Technical Documentation

Drawings

Technical architectural section drawing with measurements and structural details, labeled "SECTION 5E-A-101 (str)." The drawing includes various components and dimensions marked along two axes, forming an L-shaped configuration.

Technical architectural section drawing with measurements and structural details, labeled "SECTION 5E-A-101 (str)." The drawing includes various components and dimensions marked along two axes, forming an L-shaped configuration.

Architectural technical drawing of a building section with detailed structural elements, labeled measurements, and annotations, on a black background.

Architectural technical drawing of a building section with detailed structural elements, labeled measurements, and annotations, on a black background.

Architectural section drawing labeled "Section SE-A3-102" showing structural details with measurements and materials on a black background.

Architectural section drawing labeled "Section SE-A3-102" showing structural details with measurements and materials on a black background.

Architectural section drawing labeled "SECTION SE-A3-102 (vz opt.2)", showing a cross-sectional view of a building with measurements and a human figure for scale.

Architectural section drawing labeled "SECTION SE-A3-102 (vz opt.2)", showing a cross-sectional view of a building with measurements and a human figure for scale.

Architectural section drawing labeled "Section SE-A3-102" showing detailed measurements and structural components with various hatch patterns on a black background.

Architectural section drawing labeled "Section SE-A3-102" showing detailed measurements and structural components with various hatch patterns on a black background.

Technical drawing of building section SE-A3-102, showing detailed measurements and construction elements.

Technical drawing of building section SE-A3-102, showing detailed measurements and construction elements.

Architectural section drawing labeled 'Section SE-A3-103' showing structural details, dimensions, and materials in cross-section view.

Architectural section drawing labeled 'Section SE-A3-103' showing structural details, dimensions, and materials in cross-section view.

Technical architectural blueprint with detailed section view and annotated dimensions

Technical architectural blueprint with detailed section view and annotated dimensions

Architectural technical drawing labeled "DETAIL DE-A3-202" showing cross-section of a structure with measurements and component labels, featuring intricate details of structural elements in black and white.

Architectural technical drawing labeled "DETAIL DE-A3-202" showing cross-section of a structure with measurements and component labels, featuring intricate details of structural elements in black and white.

Architectural plan detail labeled as DETAIL DE-A3-203, showing technical specifications, measurements, and component labels on a dark background.

Architectural plan detail labeled as DETAIL DE-A3-203, showing technical specifications, measurements, and component labels on a dark background.

Architectural technical drawing detail of building structure showcasing cross-section views, dimensions, and labeling, with a focus on construction elements and materials.

Architectural technical drawing detail of building structure showcasing cross-section views, dimensions, and labeling, with a focus on construction elements and materials.

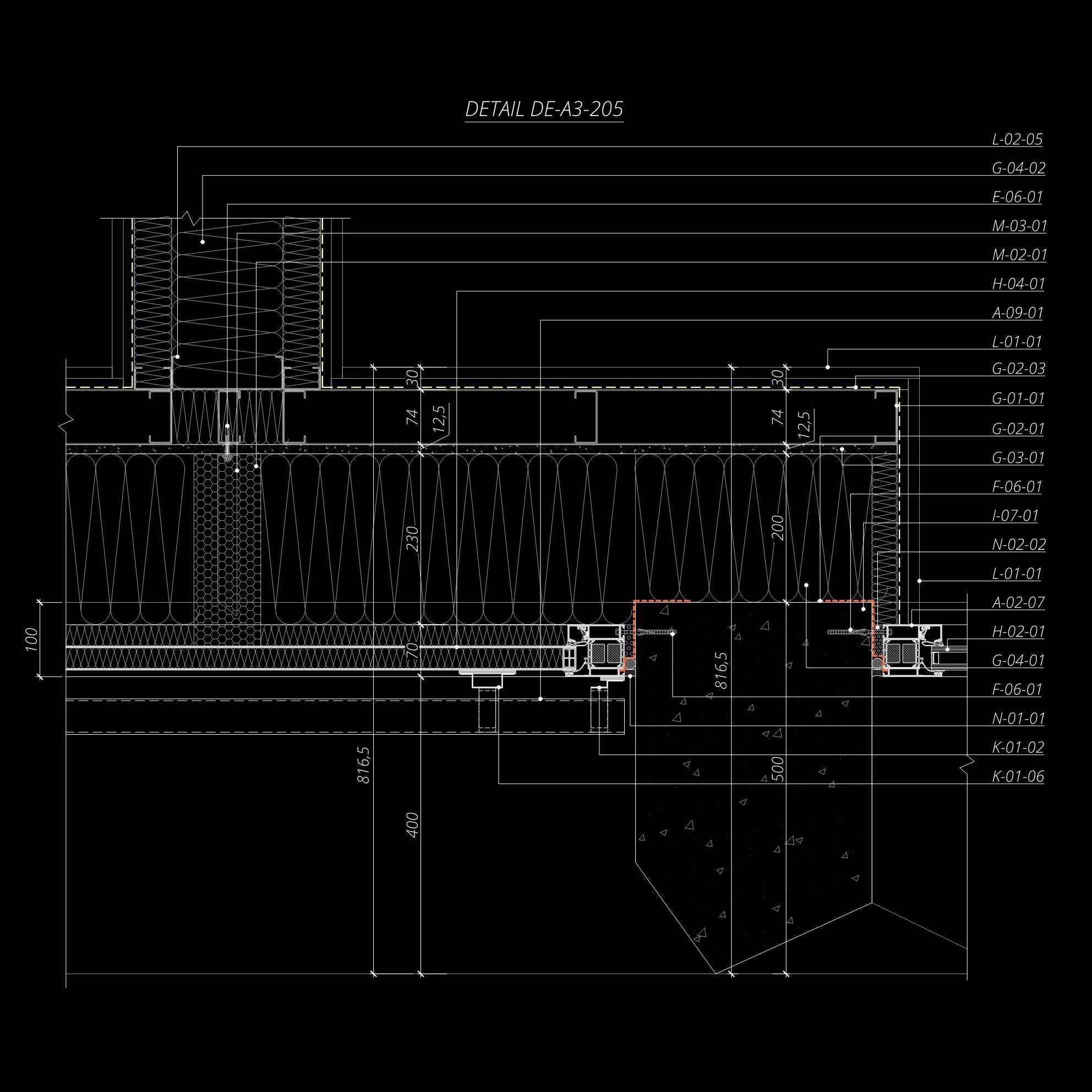

Technical drawing of a construction detail with measurements and labels, titled "Detail DE-A3-205," showing architectural components and design elements on a dark background.

Technical drawing of a construction detail with measurements and labels, titled "Detail DE-A3-205," showing architectural components and design elements on a dark background.

Architectural detail drawing depicting a cross-section of a building wall with various layers, materials, and measurements labeled, including insulation, structural components, and window framing.

Architectural detail drawing depicting a cross-section of a building wall with various layers, materials, and measurements labeled, including insulation, structural components, and window framing.

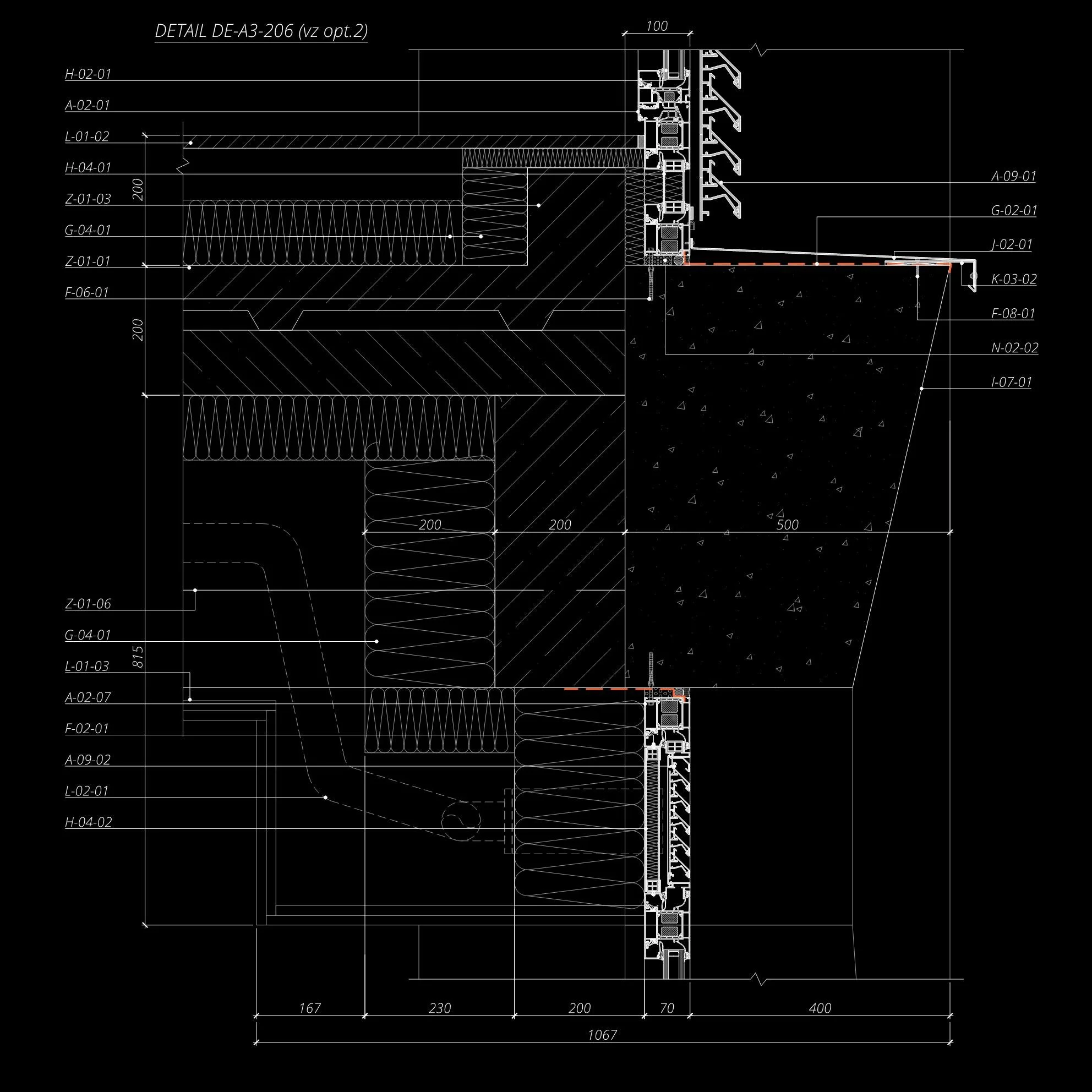

Architectural technical drawing of a building detail, showing dimensions, layers, and structural components. Labelled detail DE-A3-206 with measurements and various material textures. Lines and annotations specify construction elements and sections.

Architectural technical drawing of a building detail, showing dimensions, layers, and structural components. Labelled detail DE-A3-206 with measurements and various material textures. Lines and annotations specify construction elements and sections.

Architectural technical drawing of a building cross-section with detailed measurements and annotations outlined in white on a black background. Features include layers of materials, structural components, and various construction details.

Architectural technical drawing of a building cross-section with detailed measurements and annotations outlined in white on a black background. Features include layers of materials, structural components, and various construction details.

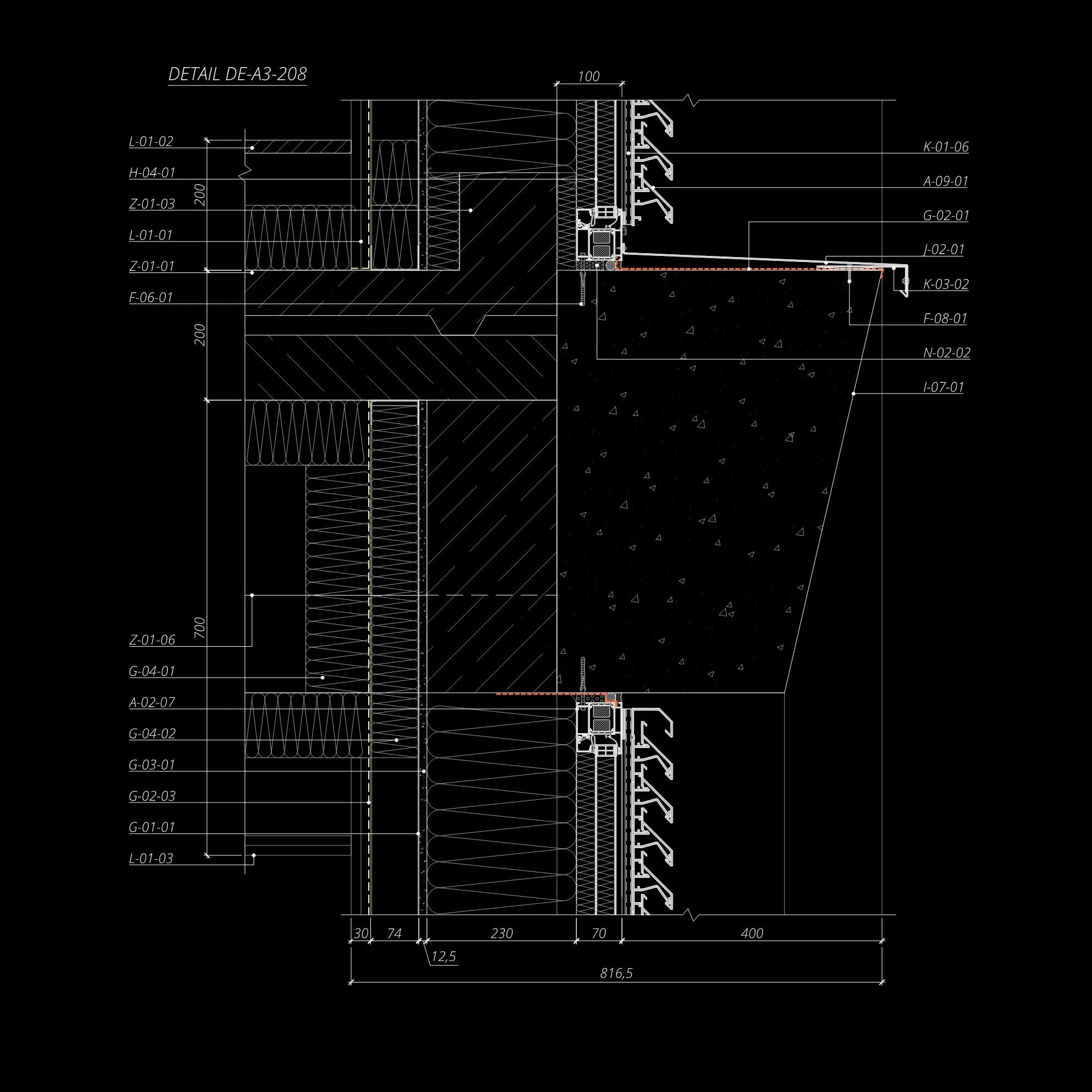

Architectural section detail drawing with measurements and labels, showcasing construction components and layering.

Architectural section detail drawing with measurements and labels, showcasing construction components and layering.

Architectural technical drawing showing details of a building structure, including layers, dimensions, and annotations. Includes various labeled parts and section measurements.

Architectural technical drawing showing details of a building structure, including layers, dimensions, and annotations. Includes various labeled parts and section measurements.

Thermal Performance Analysis

3D building heat map displaying thermal analysis with color gradient indicating temperature variations, marked by humidity level, dew point, and temperature scale. Flixo logo present.

3D building heat map displaying thermal analysis with color gradient indicating temperature variations, marked by humidity level, dew point, and temperature scale. Flixo logo present.

Thermal analysis of a building corner showcasing temperature and humidity distribution with color gradient. Labeled heat map indicating 50% relative humidity and temperature scale from 20°C to -4°C. "Flixo" logo present.

Thermal analysis of a building corner showcasing temperature and humidity distribution with color gradient. Labeled heat map indicating 50% relative humidity and temperature scale from 20°C to -4°C. "Flixo" logo present.

Thermal simulation of a building envelope in 3D, showing color-coded heat distribution and moisture levels. Includes a temperature scale from -4°C to 20°C and a humidity level of 50% RH. "Flixo" logo present.

Thermal simulation of a building envelope in 3D, showing color-coded heat distribution and moisture levels. Includes a temperature scale from -4°C to 20°C and a humidity level of 50% RH. "Flixo" logo present.

Thermal analysis of a building facade showing temperature distribution. Areas are colored from red (warm) to purple (cool), indicating varying temperatures around a structural component. Includes humidity (50%) and dew point (9.3°C). Flixo logo prese

Thermal analysis of a building facade showing temperature distribution. Areas are colored from red (warm) to purple (cool), indicating varying temperatures around a structural component. Includes humidity (50%) and dew point (9.3°C). Flixo logo present.

Boundary Condition

Internal T °C +20

External T °C -4

Humidity RH % 50

Dew point T °C +9.3

3D model simulating thermal bridge in building facade with color gradient indicating temperature variations, featuring flixo logo.

3D model simulating thermal bridge in building facade with color gradient indicating temperature variations, featuring flixo logo.

Thermal insulation analysis of a window section showing temperature gradients

Thermal insulation analysis of a window section showing temperature gradients

3D thermal analysis of a building wall intersection with color gradient indicating temperature differences, featuring a graph showing humidity at 60%, a 21°C to -2°C scale, and 12.9°C dew point. "Flixo" logo in the corner.

3D thermal analysis of a building wall intersection with color gradient indicating temperature differences, featuring a graph showing humidity at 60%, a 21°C to -2°C scale, and 12.9°C dew point. "Flixo" logo in the corner.

3D thermal simulation of a building corner with temperature gradient, highlighting heat flow and dew point. Includes a color scale from blue to red, representing low to high temperature, with humidity noted as 60% and dew point at 12.9°C. "Flixo" log

3D thermal simulation of a building corner with temperature gradient, highlighting heat flow and dew point. Includes a color scale from blue to red, representing low to high temperature, with humidity noted as 60% and dew point at 12.9°C. "Flixo" logo present.

Boundary Condition

Internal T °C +21

External T °C -2

Humidity RH % 60

Dew point T °C +12.9

Heat Losses Analysis

Thermal simulation of building corner with insulation layers, color gradients showing heat flow, and thermal conductivity values labeled on image.

Thermal simulation of building corner with insulation layers, color gradients showing heat flow, and thermal conductivity values labeled on image.

Thermal analysis diagram of a window or facade corner joint showing heat flow and temperature distribution with color gradient and labeled thermal transmittance values. Includes annotations for Uj and Ug values. Flixo logo in corner.

Thermal analysis diagram of a window or facade corner joint showing heat flow and temperature distribution with color gradient and labeled thermal transmittance values. Includes annotations for Uj and Ug values. Flixo logo in corner.

Boundary Condition

Internal T °C +20

External T °C 0
