Drawings

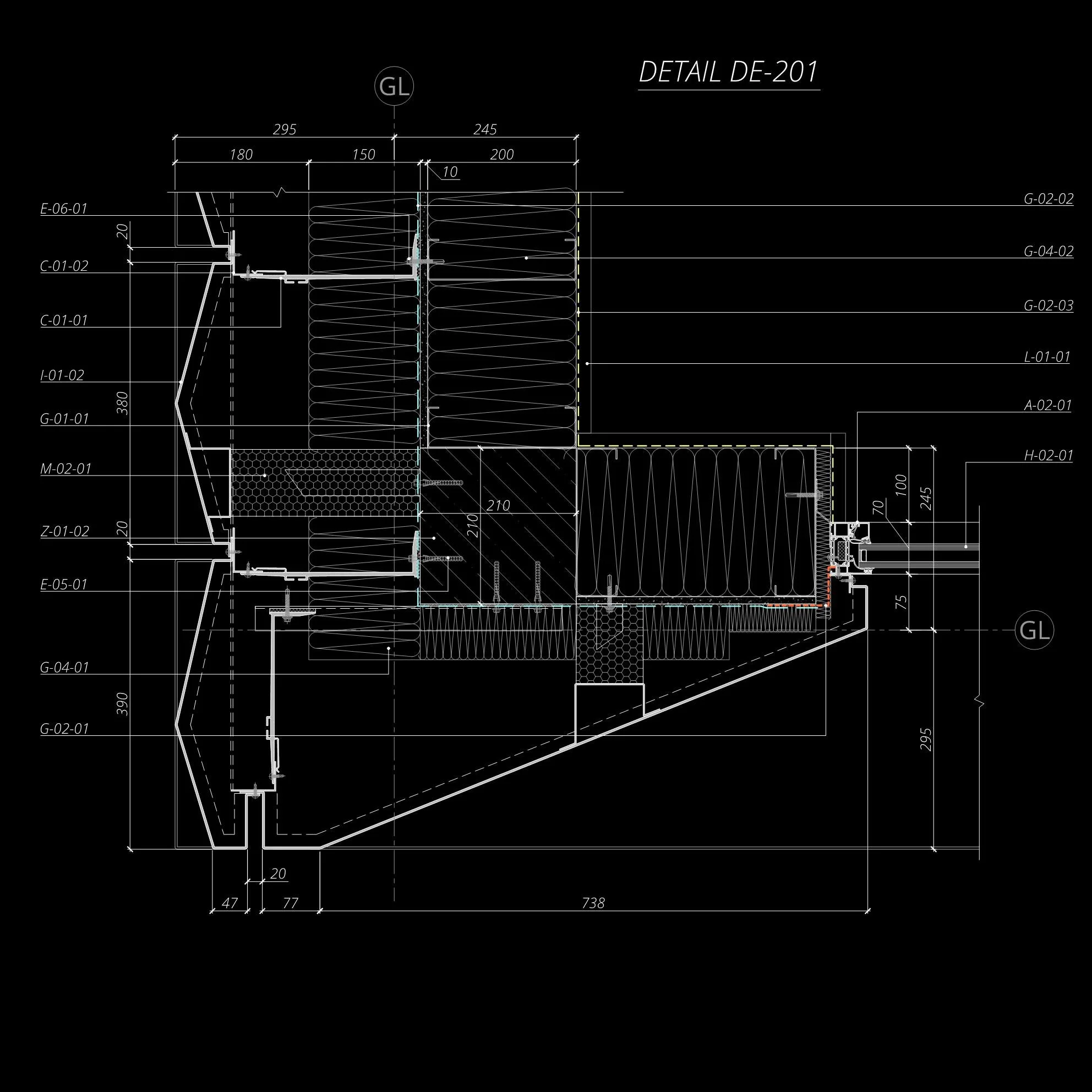

Architectural section drawing labeled SE-101, showing structural details and dimensions with additional references to sections SE-105, SE-103, SE-104, and details DE-201, DE-202.

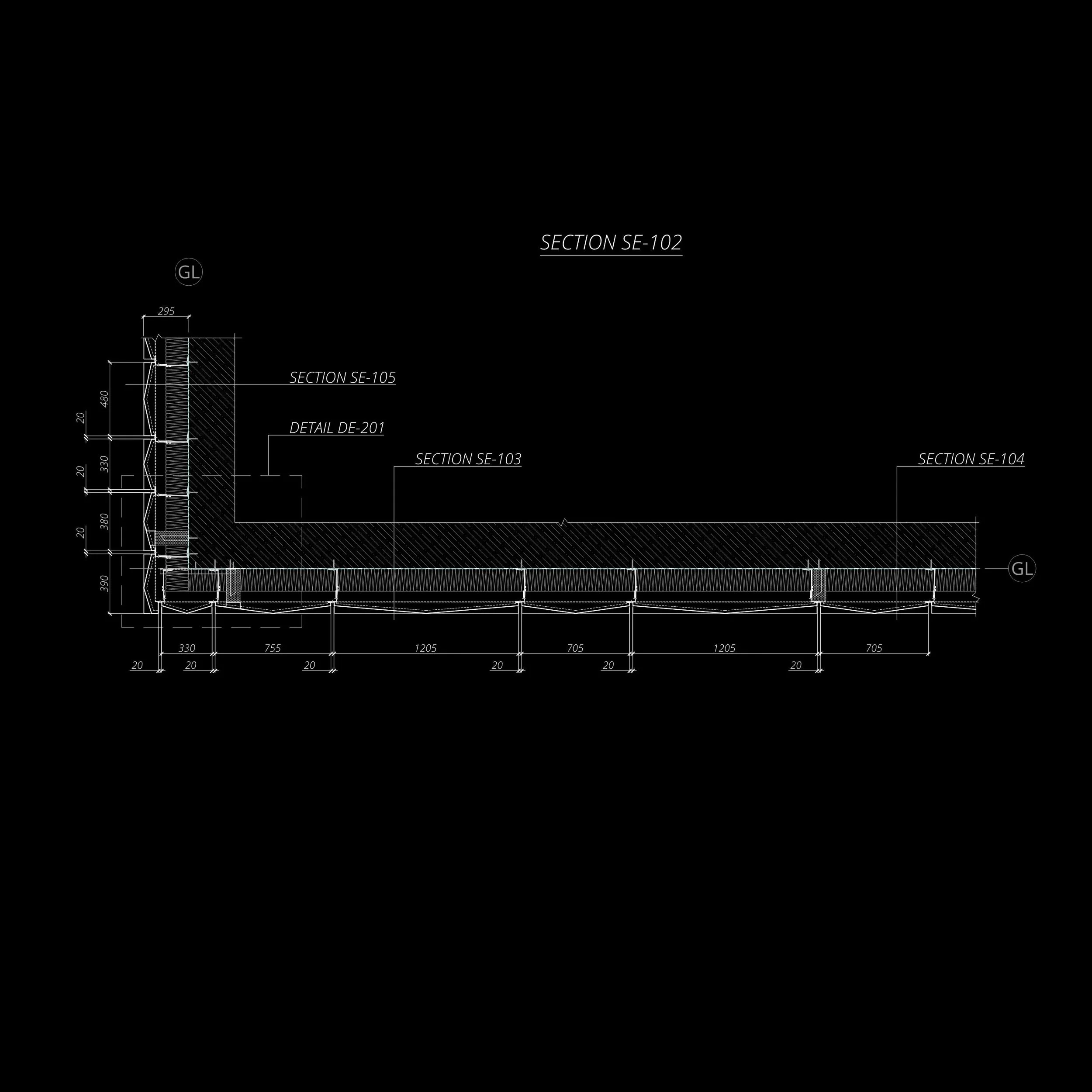

Architectural section drawing labeled "SECTION SE-102," with detailed measurements and section lines indicating various components and dimensions.

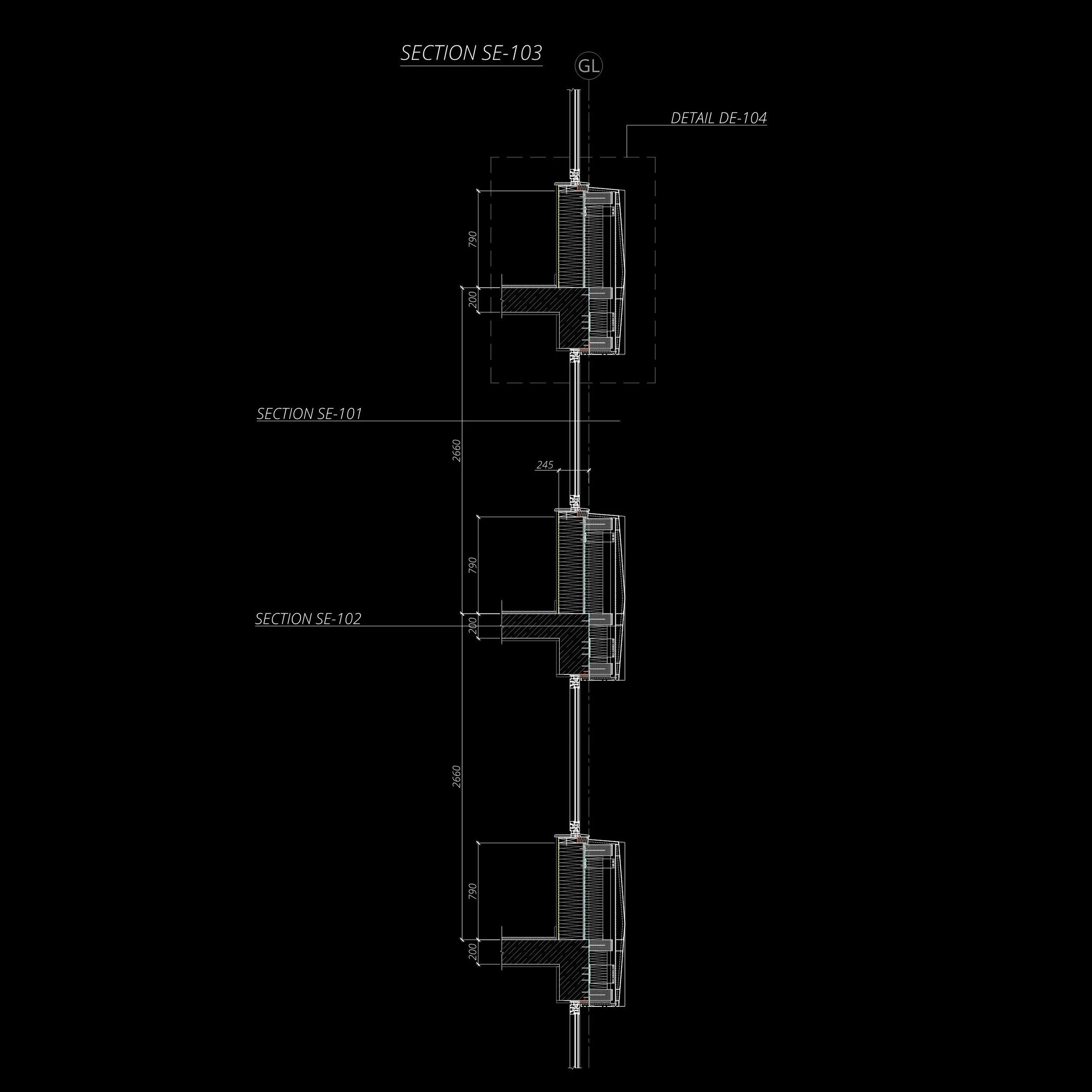

Architectural section drawing of a building with structural details and dimensions labeled as SE-101, SE-102, SE-103, and DETAIL DE-104 on a black background.

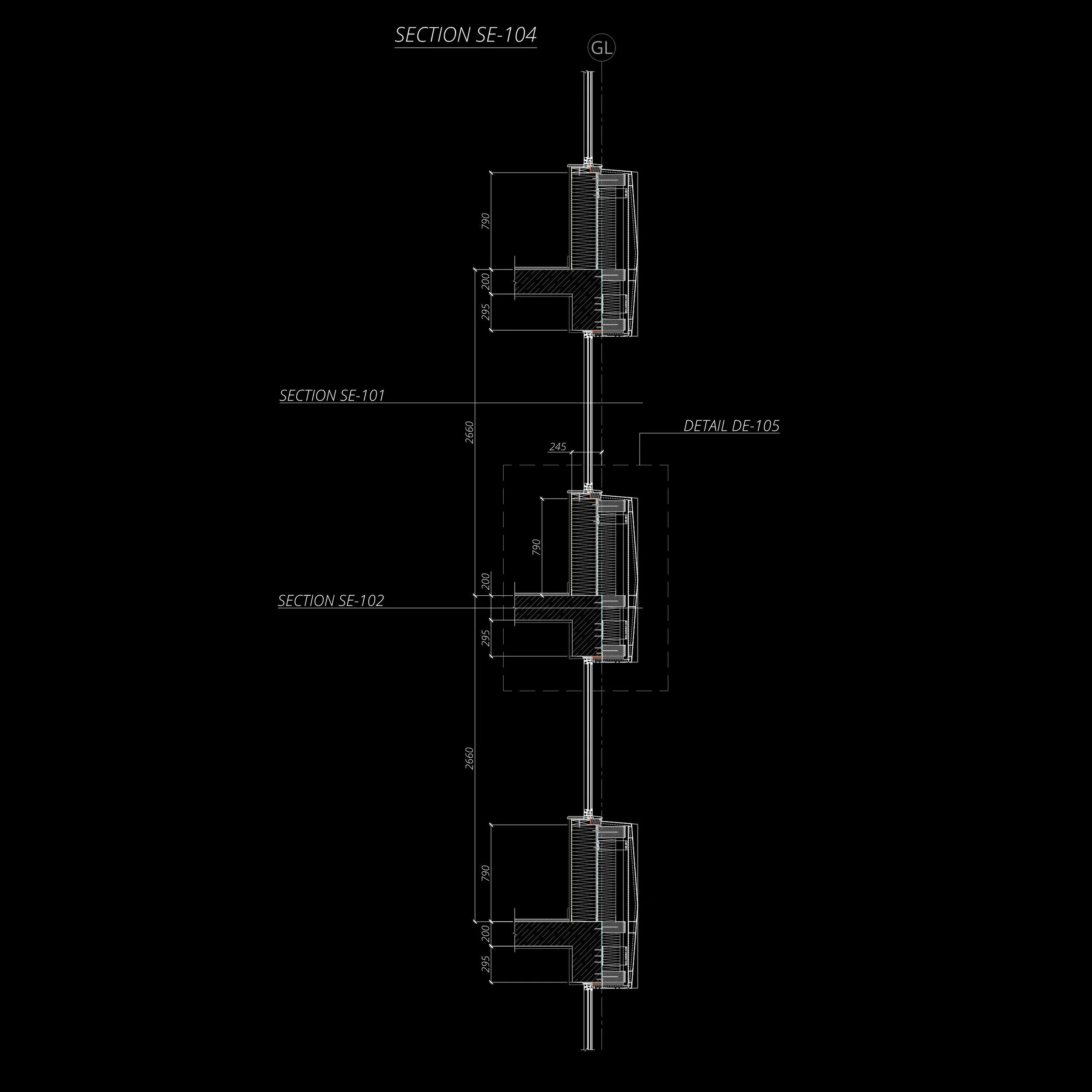

Architectural section drawing showing detailed measurements and sections labeled SE-104, SE-101, SE-102, and detail DE-105 on a black background.

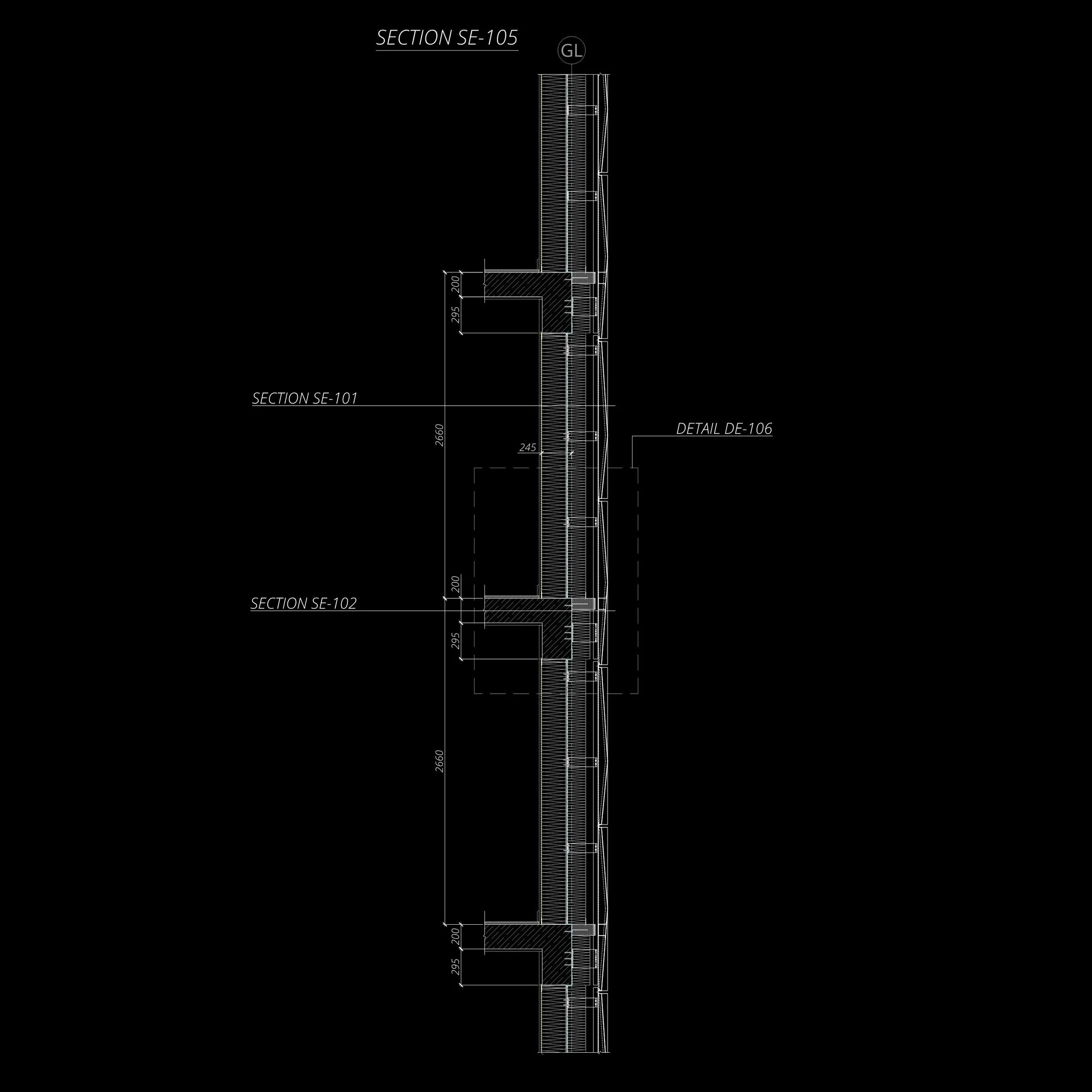

Architectural cross-section diagram labeled "Section SE-105" with additional markings "Section SE-101" and "Section SE-102."
Architectural detail drawing with measurements and section views labeled "Detail DE-201."

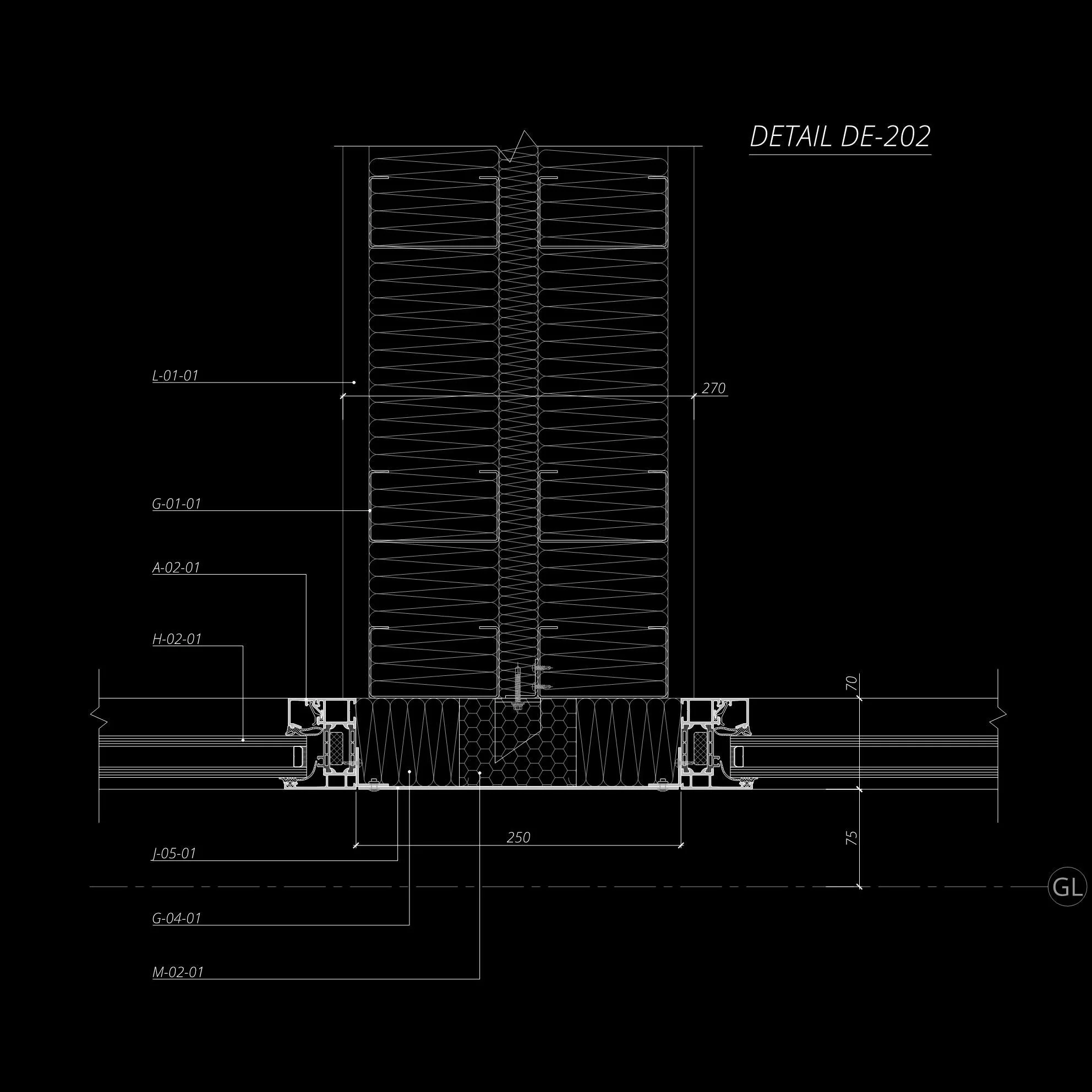

Architectural drawing showing construction details labeled "DETAIL DE-202" with measurements and technical specifications for a building feature.
Architectural detail drawing labeled "DETAIL DE-203" showing cross-section of structural elements with dimensions and construction materials.
Architectural blueprint showing detailed cross-section labeled 'DETAIL DE-204'. It includes measurements and annotations for building components and structural elements.

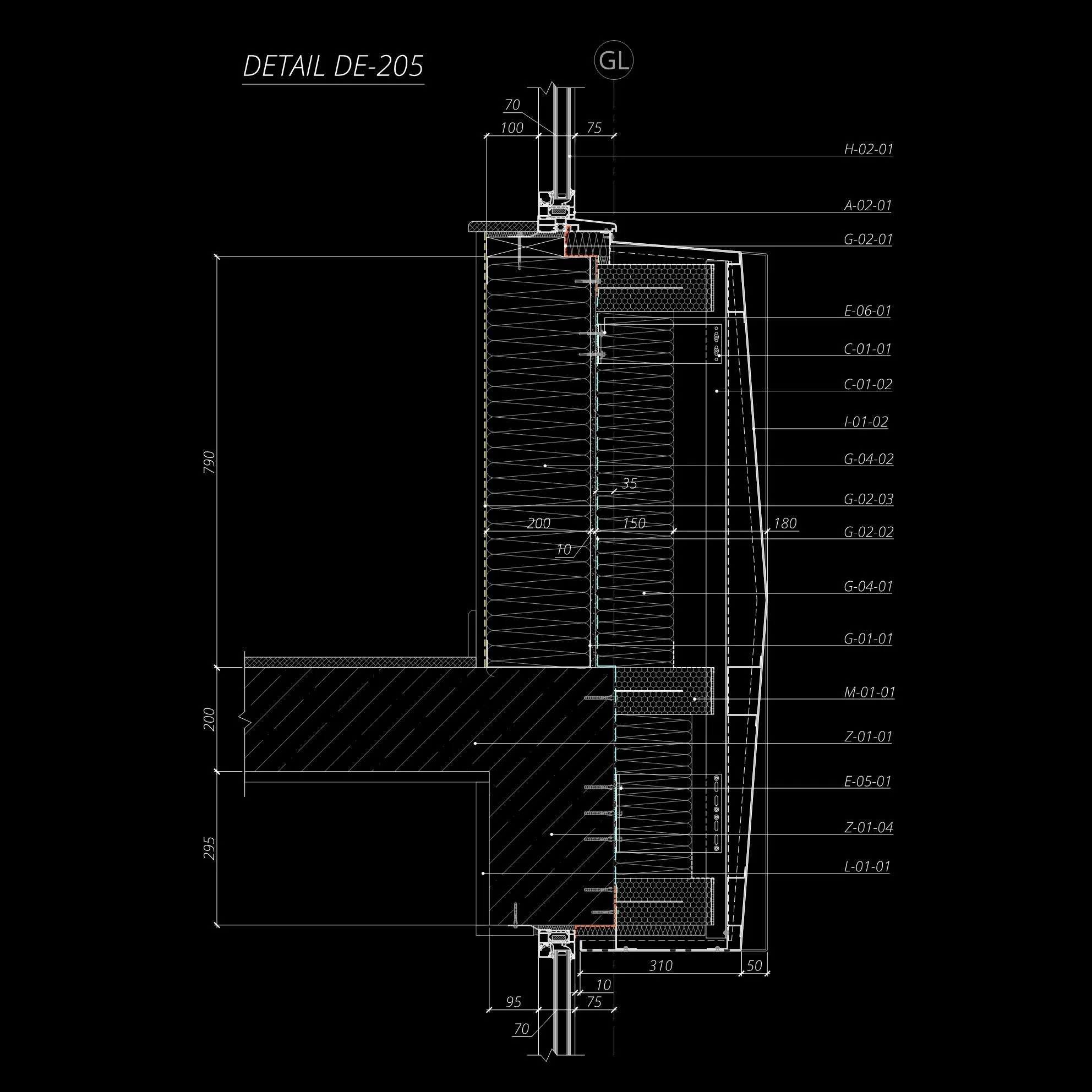

Architectural detail drawing labeled DE-205, illustrating a cross-sectional view of a wall and floor system with measurements and annotated layers, including insulation and structural components.
Architectural section detail labeled DE-206 with dimensions and material labels, showing layers of construction elements, indicated in white on a black background.
Uj – 0.77 W/m2K Up - 0.10 W/m2K
Condensation Risk. Boundary Conditions 1

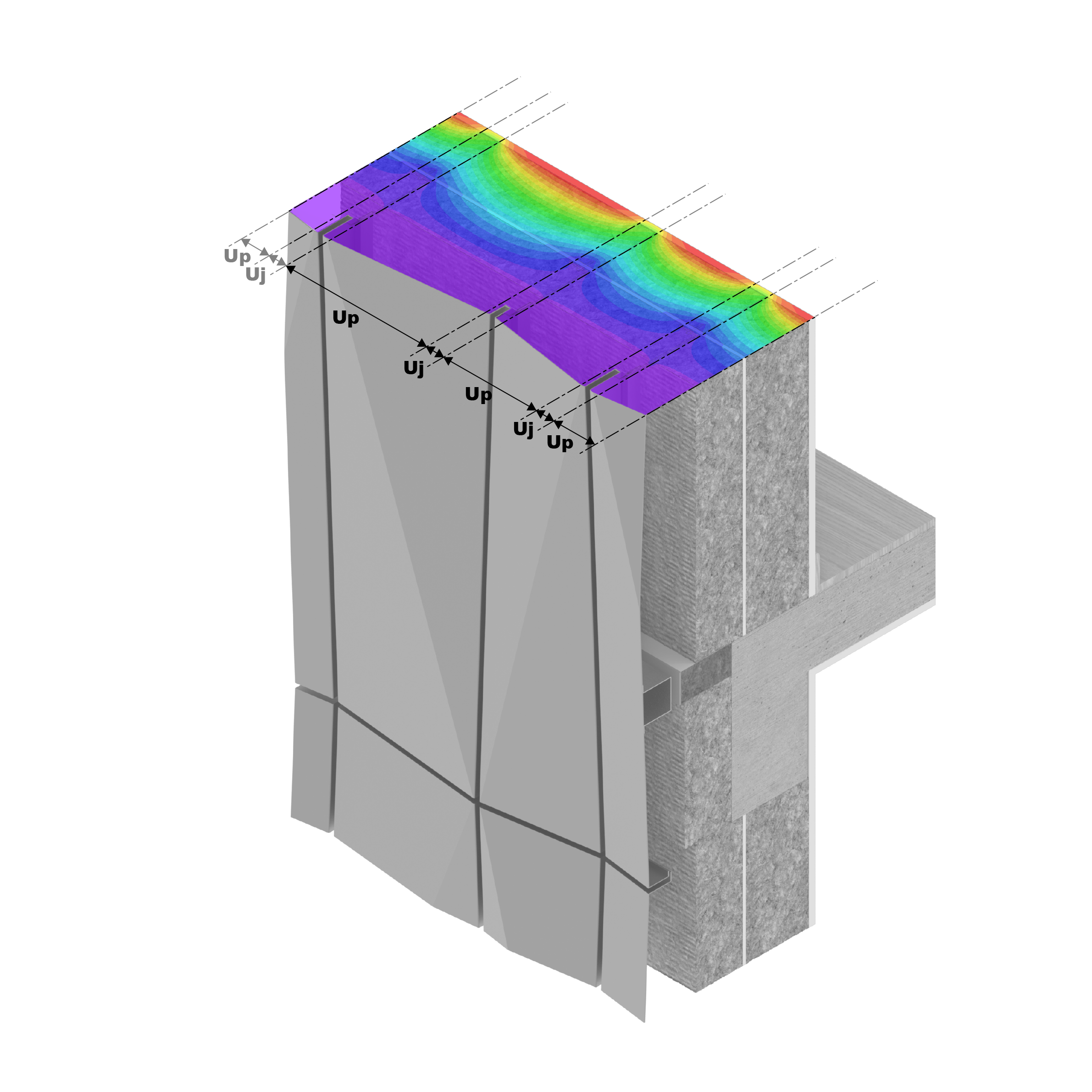

3D thermal analysis of a building wall with color gradient indicating temperature distribution.
Condensation Risk. Boundary Conditions 2
Thermal simulation of a building wall section, showing temperature gradient from purple (coldest) to red (warmest).
