Technical Documentation
Drawings
Architectural section drawing labeled "Section SE-101" with detailed measurements and construction details, featuring multiple horizontal and vertical lines indicating structural components.
Architectural section drawing labeled SE-102 showing detailed measurements and structural components in a vertical view.
Architectural section drawing labeled "Section SE-103" with detailed measurements and structure details in a technical plan layout.
Architectural section drawing labeled 'SECTION SE-104' showing structural details and measurements, including dimensions 2100, 600, and 5400.
Technical architectural drawing of a building section with detailed measurements, materials, and structural elements labeled. Includes dimensions and annotations for construction purposes.

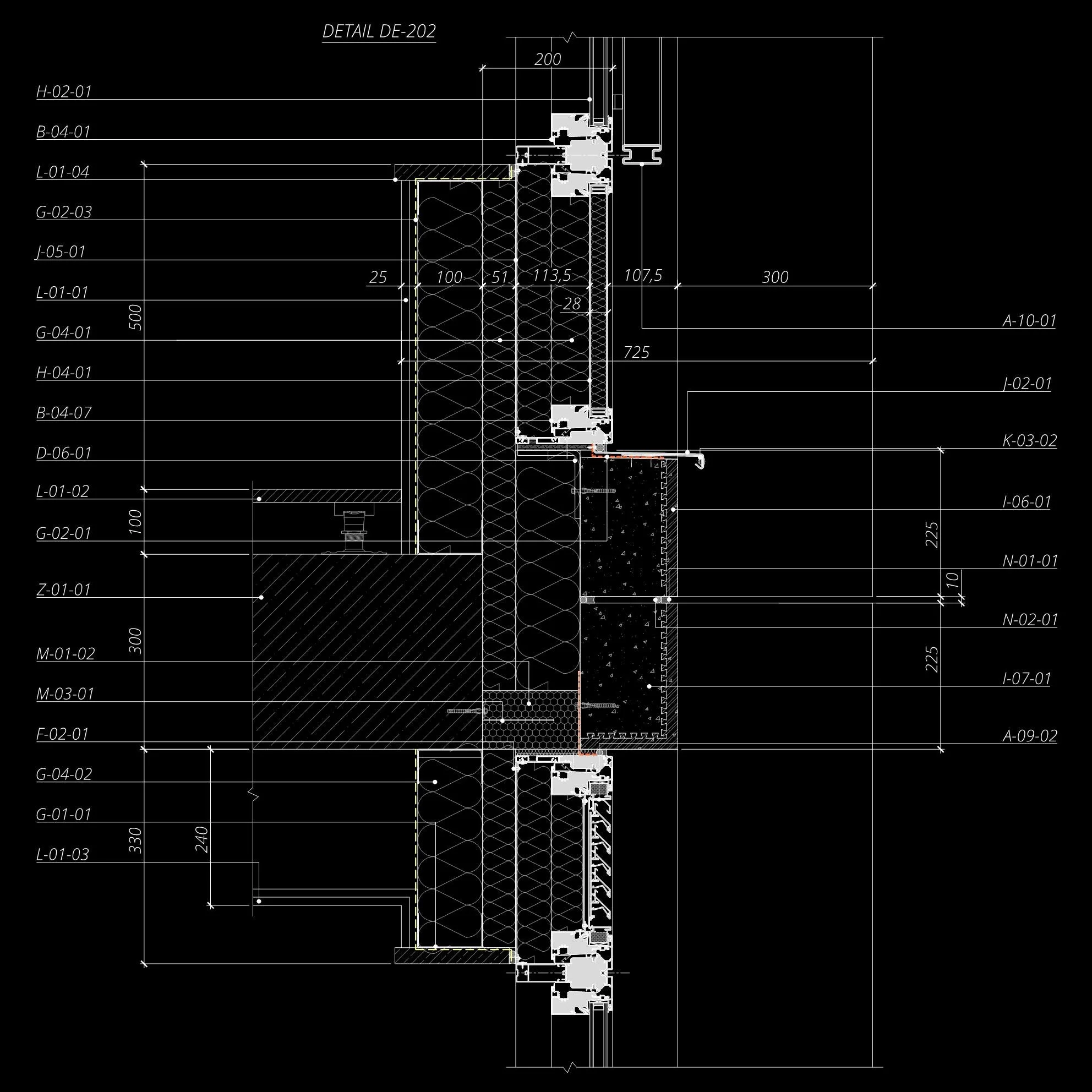

Architectural detail drawing of a wall section, labeled "DETAIL DE-202," showing dimensions and layers of materials, including insulation and structural elements. Various measurements and labels such as A-10-01, L-02-01 are indicated.
Architectural detail showing cross-sectional view with labeled components and measurements, titled "DETAIL DE-203."

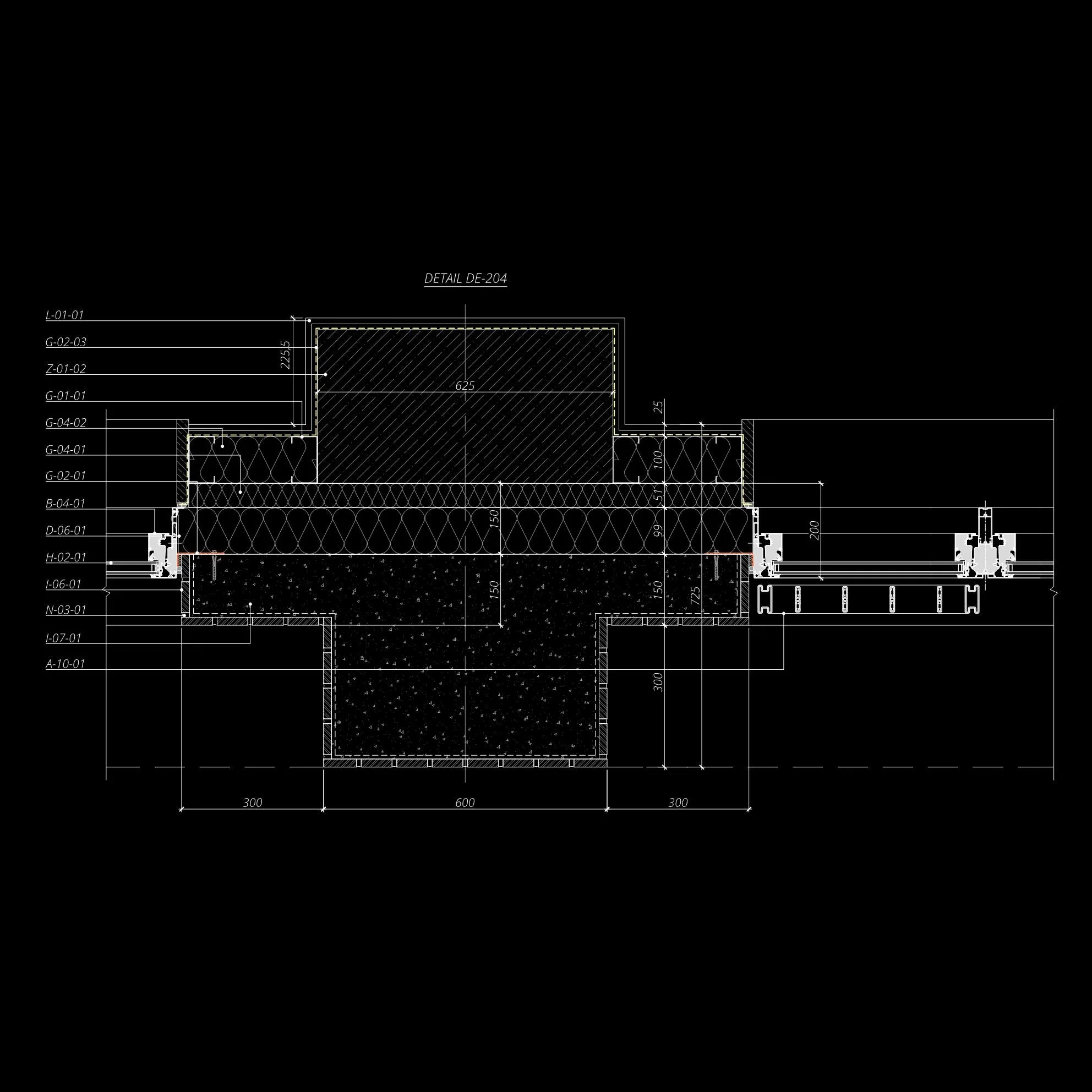

Architectural blueprint showing detailed section view of building construction with dimensions and annotations.

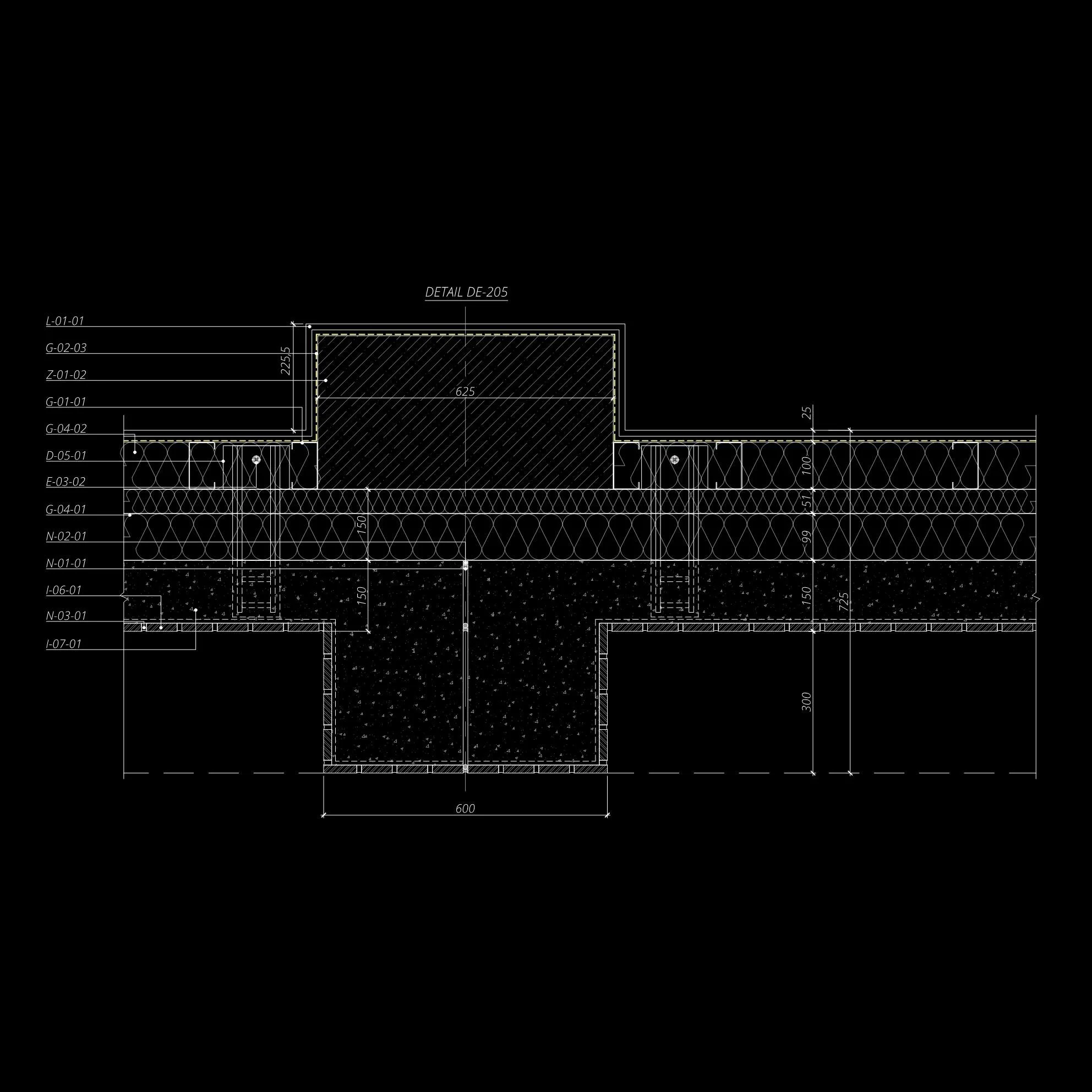

Detailed architectural drawing of a cross-section view of a building foundation, showing labeled layers and measurements in millimeters, including structural elements and material descriptions.
Thermal Performance Analysis
Thermal analysis of a wall structure showing heat distribution with color gradient. Left side displays temperature scale with 21°C to -2°C range and humidity level at 60% RH.
Boundary Condition
Internal T °C +21
External T °C -2
Humidity RH % 60
Dew point T °C +12.9
Heat Losses Analysis
Thermal analysis of a building wall junction with color gradient indicating heat distribution, featuring labels "Uj" and "Up" with thermal values, and "Flixo" logo.
Thermal bridge analysis of wall and window junction showing heat flow with color gradient, Flixo software, temperature values Ψj -0.049 W/mK, Ug -1.00 W/m²K, Up -0.14 W/m²K.
Thermal analysis of wall corner with color gradient showing heat flow, labeled with thermal conductance values Ug, Uj, Up.
Boundary Condition
Internal T °C +20
External T °C 0
