Technical Documentation

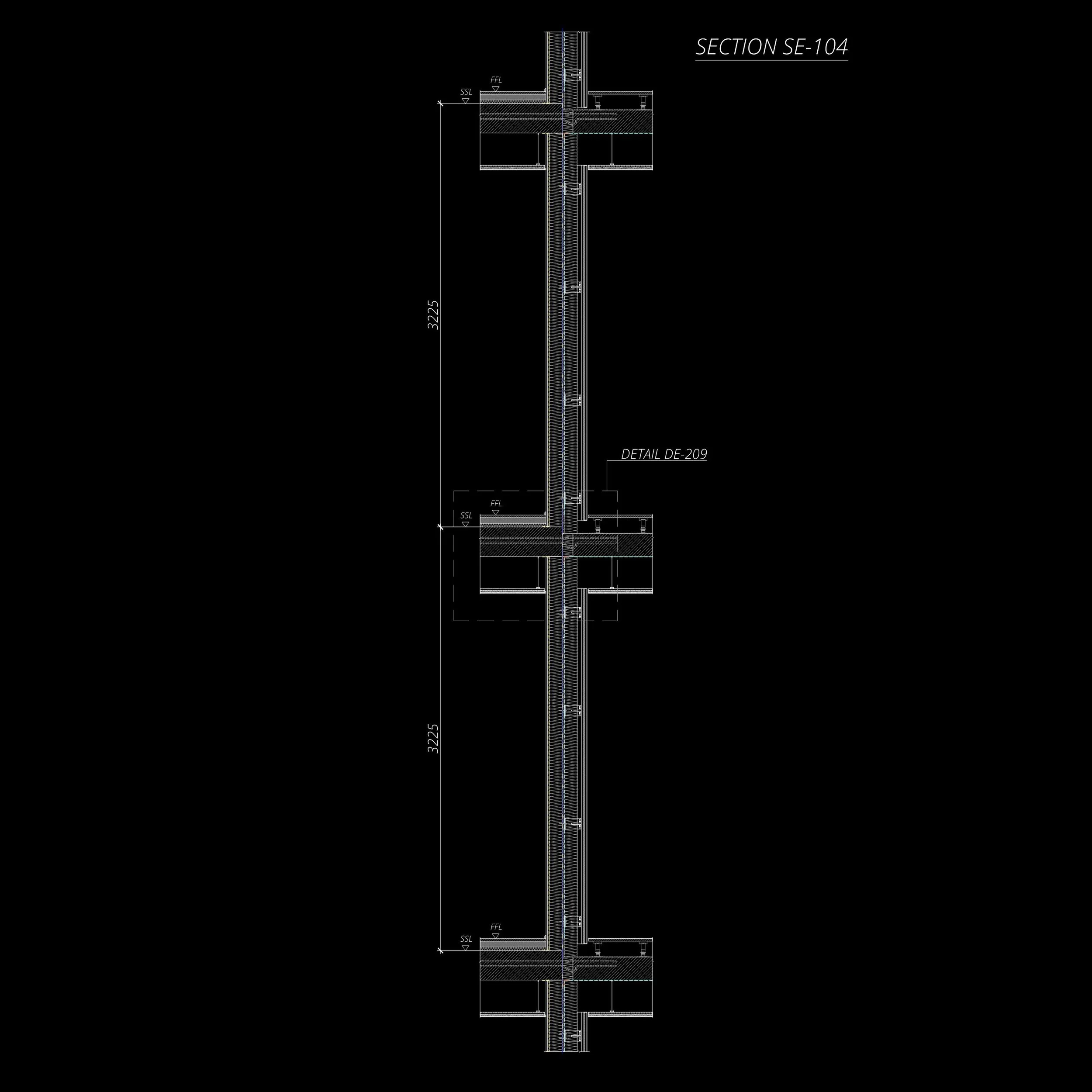

Drawings
Thermal Performance Analysis
Boundary Condition
Internal T °C +20
External T °C -4
Humidity RH % 50
Dew point T °C +9.3
Boundary Condition
Internal T °C +21
External T °C -2
Humidity RH % 60
Dew point T °C +12.9
Heat Losses Analysis
Uj – 0.97 W/m2K; Up – 0.18 W/m2K
Uja – 2.35 W/m2K; Ujb – 0.26 W/m2K; Ujc – 3.00 W/m2K; Upa – 0.14 W/m2K; Upb – 0.15 W/m2K; Ug - 1.00 W/m2K
Uj – 0.85 W/m2K; Up – 0.31 W/m2K
Uja – 0.26 W/m2K; Ujb – 0.22 W/m2K; Upa – 0.14 W/m2K; Upb – 0.34 W/m2K; Upc – 0.14 W/m2K
Boundary Condition
Internal T °C +20
External T °C 0
